U Type Powder Mixer

Model
U Type
Capacity
150-1000kg/batch
Main motor power
Carbon steel
Conditioner power
CV≤7%
Feeder power
3-6min/batch
Ring die diameter
33r/min
Share With :

Description

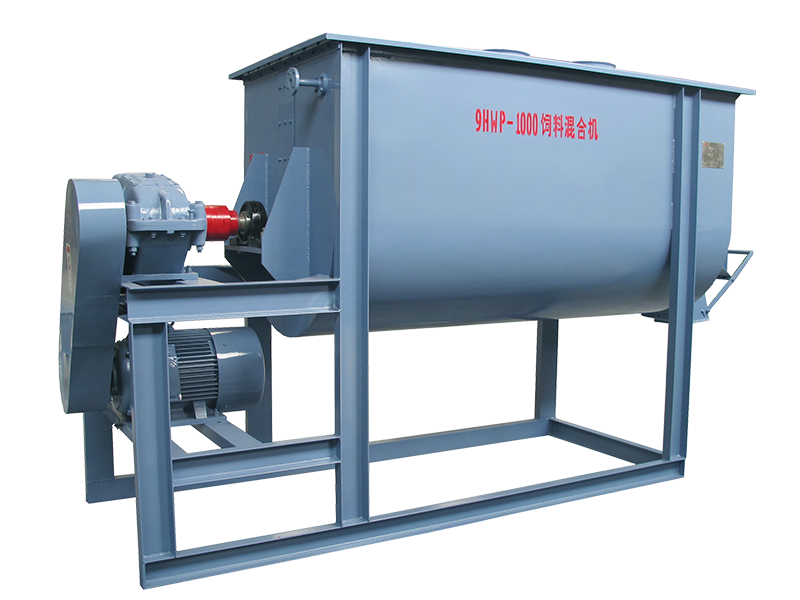

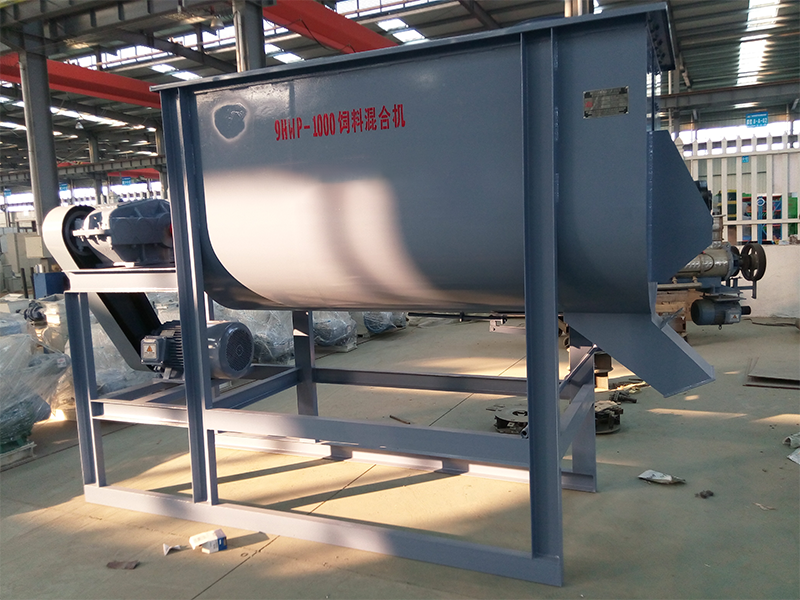

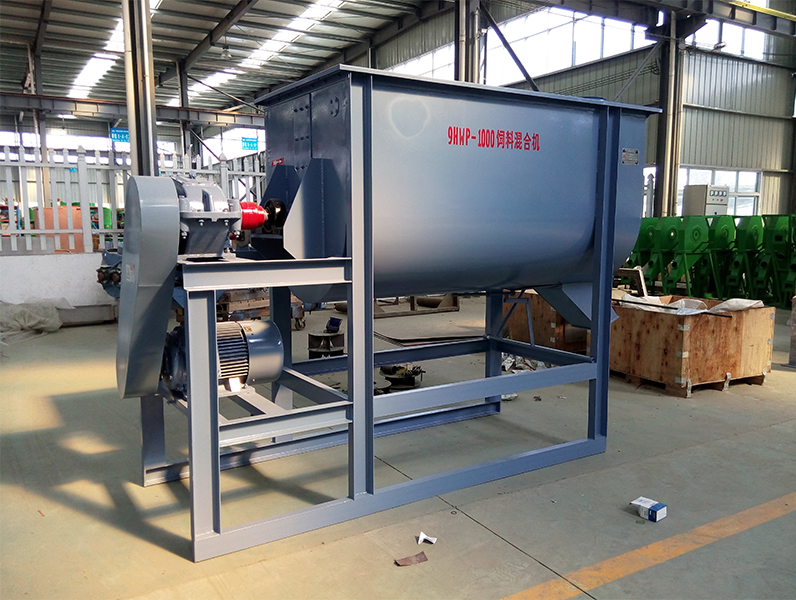

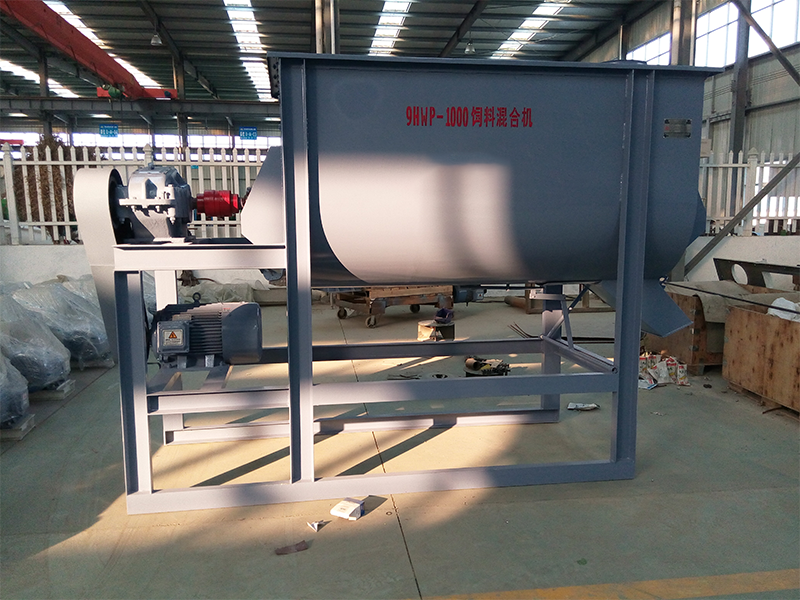

U Type Powder Mixer
The powder mixer machine is designed to meet the requirments: fertilizer,chemical,metallurgy,etc. The product has been widely used in making organic fertilizer,chemical and the distribution systems in other industries .We can produce a new one according to your needs.
Simple
Affordable
No segregation
No leakage
Less residue
Convenient Operation
Detailed instructions of U Type Powder Mixer

Steady transmission with less wear
high homogeneous degree, CV≤7%, and no material segregation
Steady transmission with less wear and optional machine bodies which are made from carbon steel, stainless steel, composite materials and etc.
Application

Unique design return air system ensures air current balance in all-dimensional feed in materials , Suitable for premix, poultry feed , aquatic feed , additives , chemical and medicine industries, etc.
A

After installation and adjust,we will training our customer's work how to operate;
B

Training worker how to maintain and protect
C

According features,we will make a complete maintain rules for you, contains how to maintain,when to maintain,who maintain)
D

Our company after-sale department will call you at regular intervals,ask if maintain and give advice.

Features

U Type Powder Mixer Features



1

There is no dead angle and no block inside
2

Expected to meet the environmental requirements
3

High mixing evenness degree,CV≤7%,
4

mixing time:3-6min/batch.
5

Convenience in maintenance




Super quality of Henan snowy owl U Type Powder Mixer



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery 20%.
Output higher 20%;
Feed rate of return increase by 3-5%.

Parameters

Model LHY0.3 LHY0.5 LHY1.0 LHY2.0
Capacity 150kg/batch 250kg/batch 500kg/batch 1000kg/batch
Material Carbon steel
Power 1.5kw 3/4kw 7.5kw 11kw
Rotation speed 33r/min
Mixing time 3-6min
Mixing uniformity ≤7%
Appearance 1580*700 *1180mm 2000*750 *1300mm 2300*1000 *1900mm 2700*1150 *2100mm
