SLHY Single Shaft Ribbon Mixer

Model
SLHY
Capacity
250-2000kg/P
Main motor power
4-30kw
Conditioner power
CV≤7%
Feeder power
2-3minutes/batch
Ring die diameter
Offer manual book and engineer's guidance
Share With :

Description

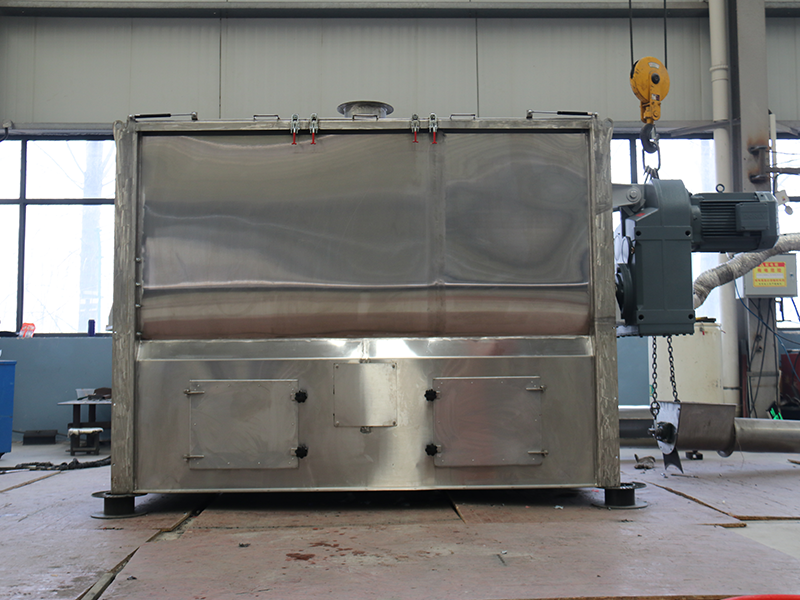

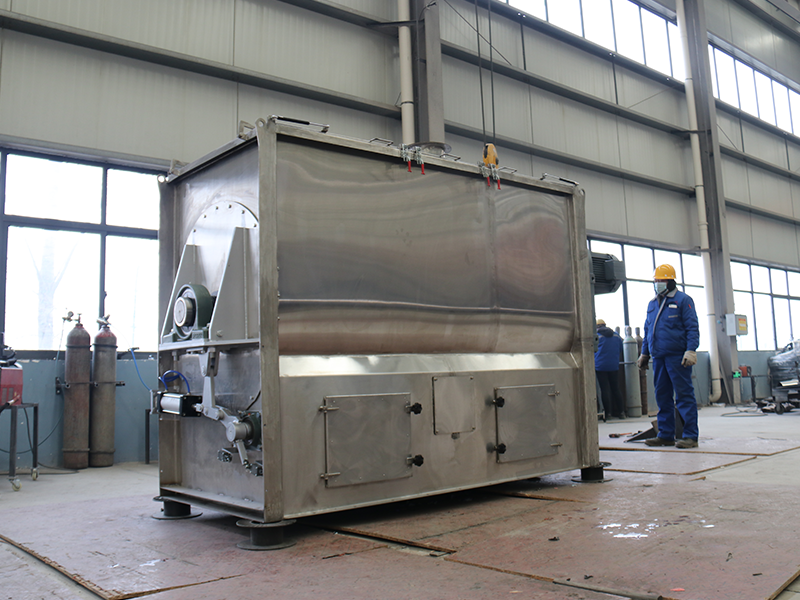

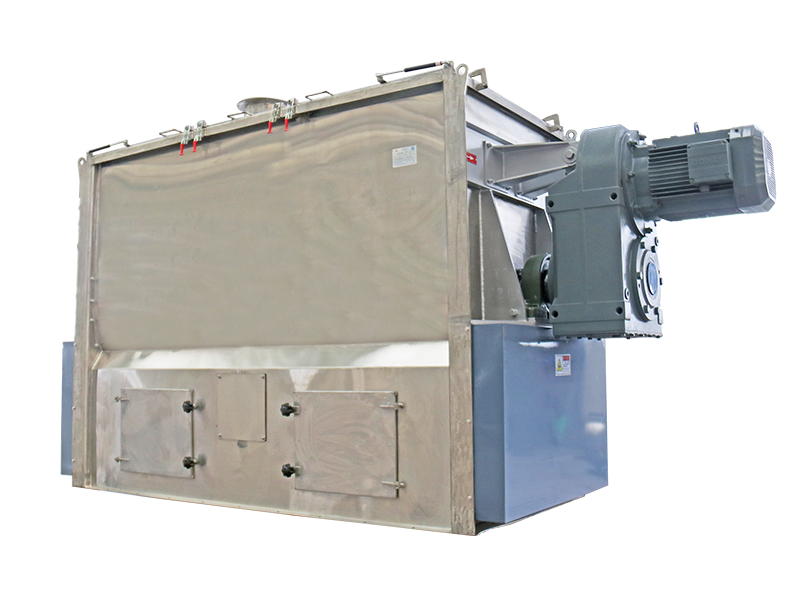

SLHY Single Shaft Ribbon Mixer
Feed Mixer can mix all kinds of items to the right proportion is highly possible. This is the primary plant that makes it possible for the mixing process to be accomplished in a timely manner. Th feed production line is basically used in both medium and small animal feed plant.
Short mixing time
Round body
No segregation
No leakage
Less residue
Convenient Operation
Detailed instructions of SLHY Single Shaft Ribbon Mixer

This mature model is widely employed in blending powdery materials in compound feed industry to ensure compound feed quality.
Optimum design of bidirectional screw ribbon rotor, gentle mixing process, high homogeneous degree, CV≤7%, and no material segregation
Steady transmission with less wear and optional machine bodies which are made from carbon steel, stainless steel, composite materials and etc.
Application

Unique design return air system ensures air current balance in all-dimensional feed in materials , Suitable for premix, poultry feed , aquatic feed , additives , chemical and medicine industries, etc.
A

After installation and adjust,we will training our customer's work how to operate;
B

Training worker how to maintain and protect
C

According features,we will make a complete maintain rules for you, contains how to maintain,when to maintain,who maintain)
D

Our company after-sale department will call you at regular intervals,ask if maintain and give advice.

Features

SLHY Single Shaft Ribbon Mixer Features



1

There is no dead angle and no block inside
2

Body is round.
3

High mixing evenness degree,CV≤7%,
4

mixing time:2-3minutes.

5

Can be customized for special atomization spray system
6

High mixing evenness degress




Super quality of Henan snowy owl SHW Single Shaft Ribbon Mixer



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery 20%.
Output higher 20%;
Feed rate of return increase by 3-5%.

Parameters

Model SLHY0.5 SLHY1.0 SLHY2.0 SLHY4.0
Power(KW) 4 7.5 15 30
Yield(t/h) 250 500 1000 2000
