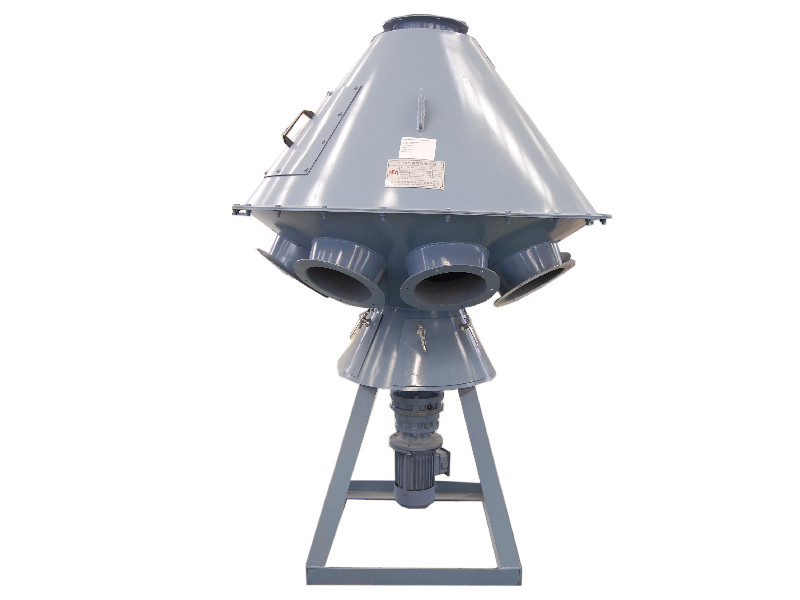

Rotary Distributor For Feed Plant

Model
Rotary Distributor
Capacity
Main motor power
Conditioner power
Feeder power
Ring die diameter
Share With :

Description

Rotary Distributor For Feed Plant
Working principle: The geared motor drives the spindle, and the spindle drives the guide material to bend along the guide rail. In the control line, turn the switch as needed and start the motor. After the guiding material bending pipe is operated to the specified position, the power supply is cut off immediately under the action of the stroke switch, and the guiding material bending pipe is stopped in the designated discharging positioning groove, and the sealing outer ring and the sealing pressing ring are pressed by the positioning groove. It is tightly sealed on the inner wall of the lower casing to form a sealed state, and then the cutting is started. A ash outlet is provided on the lower casing to discharge dust inside the machine.
Easy operate
Easy Install
Reliably
Sealed
Rotates smoothly
Compact Structure
Detailed instructions of Rotary Distributor For Feed Plant

The dispenser is easy to operate, easy to install and maintain; the equipment is equipped with an access door to facilitate daily maintenance and overhaul;
The transmission adopts the reducer direct-connecting transmission, the structure is compact, and the guiding material receiving pipe is rotated smoothly;
By means of the action of the stroke switch and the positioning groove, the guiding material bending tube is positioned accurately, and the material silo is avoided; after the guiding material feeding tube is positioned in the designated positioning groove, the rubber outer ring and the rubber pressing ring are pressed against the lower shell. On the inner wall, the sealing performance is good.
Application

Distribute the lifted material to different locations as needed, for example to individual storage bins

Features

Rotary Distributor For Feed Plant Features



1

Distributor is easy to operate and easy to install and maintain.
2

The unloading pipe is positioned accurately and reliably, avoiding material silos.
3

There is a cleaning brush inside to avoid leakage accumulation.
4

After the discharge pipe is positioned, it is reliably sealed with the distribution plate.



We Provide Turnkey Projects For Animal Feed Plant



Designed to meet for your area.
Factory direct advantage, Price is direct from the factory
Engineers Installation
According to container size, standard export package.
